| Specification | VF53AS | |
|---|---|---|
| Engine | Type | 4-stroke |
| Number of Cylinder | 3 Cylinder | |
| Cooling System | Suction Water Cooled | |
| Bore x Stroke | 61 x 60 mm (2.4 x 2.36 inch) | |
| Piston displacement | 526 mL (32.09 cu in) | |
| Output | 22.1 kW (30 PS) | |
| Fuel Type | Unleaded Gasoline (Min. 87 Octane) | |
| Fuel Tank Capacity | 10 Lit (2.64 gal) | |
| Fuel Consumption | 9.5 Lit / Hr (2.51 gal / Hr) | |
| Fuel System | Electronic Fuel Injection | |
| Oil Tank Capacity | 2 Lit (0.53 gal) | |
| Suction | Starting | Electric and manual |
| Suction System | 4 Blade Rotary-vane vaccum pump (Oilless-type) | |
| Priming System | Auto Priming | |
| Pump | Pump Type | Single Suction, Single Stage centrifugal pump |
| Suction Thread and Dia. | JIS 3″ (75mm) | |
| – | ||
| Discharge Thread and Dia. | JIS 2-1/2″ (65mm) | |
| – | ||
| Discharge Number | Twin | |
| Discharge Valve | Ball or Flat | |
| Weight | Dry Weight | 101 kg (222.66 lbs) |
| Wet Weight | 111 kg (244.71 lbs) | |
| Dimension(mm) | Overall Length x Width x Height |
670 x 790 x 740 |
| Remote Control Panel *optional |
Number of Panel (Maximum) | – |
| Length of cable for panel | – | |
Fire Pump

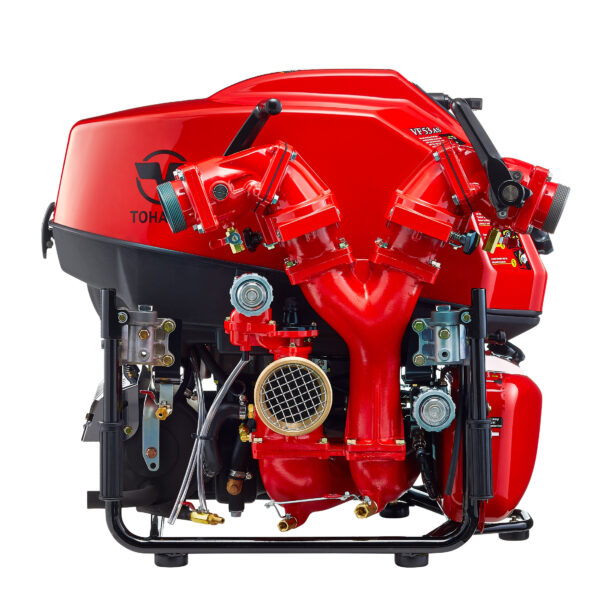

Fire Pump VF53AS
Delivers water up to 1,000m away for VF53AS
4-stroke engine model.
Hassle- free with ” Auto-priming” system.
Engine526 mL Tohatsu 4-stroke,3-cylinder,
water cooled gasoline engine Authorized output 30 PS (22 kW)Pump performance1200 liter / min. at 0.6MPa 950 liter / min. at 0.8MPa 700 liter / min. at 1.0MPa Dry weight101kg
water cooled gasoline engine Authorized output 30 PS (22 kW)Pump performance1200 liter / min. at 0.6MPa 950 liter / min. at 0.8MPa 700 liter / min. at 1.0MPa Dry weight101kg
・Quick priming
Quick priming is provided by simple operating Rotary Vane Vacuum Pump. The pump primes 3 meters in only 3 seconds.
・Engine overheat protection sensor
Engine overheat protection device is provided to safeguard against cooling water loss, and to protect engine in the operation with discharge valve closed. This device automatically shuts off engine when engine temperature reaches 80℃.
・Auto priming system
Rotary vane vacuum pump is automatically activated after engine starts, and cut off once priming is completed.
| brands | Tohutsu |
|---|
